The CrackLog is a sensor designed to accurately measure crack opening for infrastructure monitoring. The CrackLog is a completely self-contained solution, which can be installed in harsh environments.

logo-trust-techA robust sensor for monitoring

Its very low power consumption is particularly suitable for long-term monitoring.

It can send wirelessly all its data thanks to LoRaWAN technology over very long distances and can be configured remotely to modify its acquisition frequency. Based on potentiometric technology, the CrackLOG is a robust sensor. It can be used alone or in combination with several other CrackLOG to follow the global evolution of a crack.

 A temperature measurement is also made in order to correct the thermal effects on the
crack. This also allows to distinguish the so-called active cracks (irreversible evolutions)
from the passive cracks (impacted only by the temperature).

It exists in a wired RS485 version or a wireless LoRa version. The wired version
allows to create a chain. The wireless version allows to measure over several years
in places difficult to access or when the sensors are far from each other.

Data display via the Datatys platform offers simplified monitoring,
efficient and continuous.

image background

Talk to our experts

Arnaud DE PRACOMTAL

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Arnaud.DEPRACOMTAL@socotec.com
image background

Applications

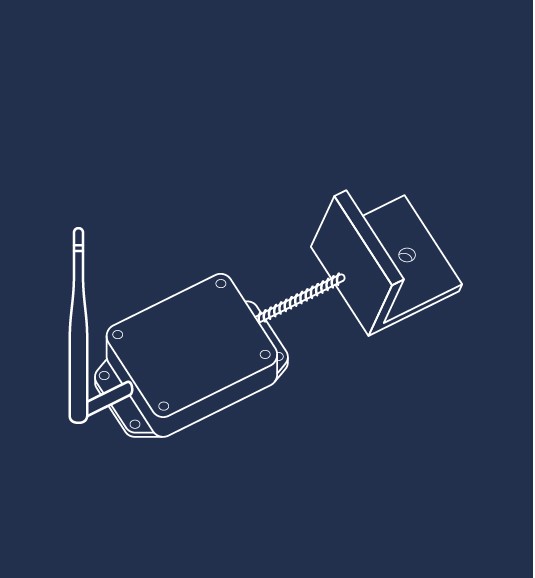

CRACKLOG® : crack monitoring

socotec-cracklog-fissures-surveillance

The CrackLOG allows you to monitor:

  • The evolution of cracks in a wall
  • The deformation of a beam in bending after the application of a load
  •  Historical monuments

The CrackLOG allows you to monitor:

  • The evolution of cracks in a wall
  • The deformation of a beam in bending after the application of a load
  •  Historical monuments

FEATURES

CrackLOG®

SENSOR

Technology

Potentiometric linear displacement sensor

Measuring range

25mm / 50mm / 100

Full scale accuracy

±0.05% FS

Resolution

10μm

MECHANICS

Sensor dimensions (without antenna)

145x80x40mm

Operating temperature

From -20°C to 70° C

Protection class

IP67

Weight

450g

Material

Aluminium

LoraWAN

Wireless network

Private with Gateway / Operated by Orange or Objenious

Technology

ABP/OTAA

Lorawan frequency

EU868MHz

Scope

Up to 10km

Transmission frequency

> 1 min
