The MicroVib© sensor is designed to measure locally the total deformations undergone by concrete (shrinkage deformations, thermal deformations, pathological swellings, mechanical deformations) or steel.

logo-trust-techSensors for strain and stress measurements

The MicroVib© sensor is designed to measure locally the total deformations
undergone by concrete (shrinkage deformations, thermal deformations, pathological
swellings, mechanical deformations) or steel.

The measurement is based on the proven vibrating rope technology, which guarantees
maintenance-free monitoring with long rope lengths and over long periods.
The MicroVib© sensor consists of a flexible monolithic test body, which has two
cheeks defining the measurement length. The measurement of this frequency can
be carried out over large wiring distances.
The MicroVibRR© version is made of radiation resistant materials.

image background

Talk to our experts

Arnaud DE PRACOMTAL

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Arnaud.DEPRACOMTAL@socotec.com
image background

Applications

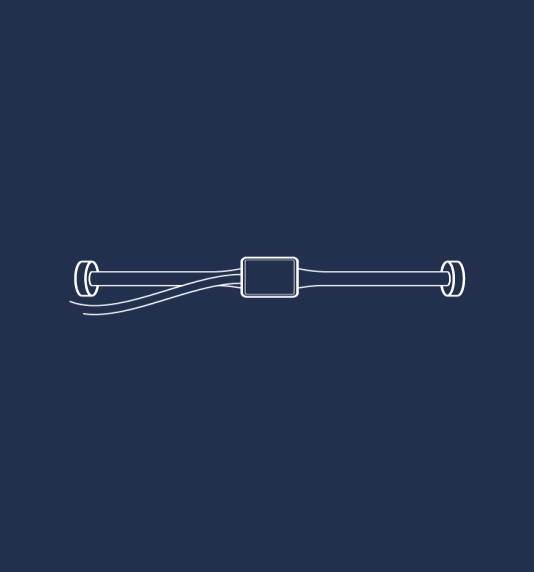

MICROVIB / MICROVIB RR® vibrating string extensometer

cementyscapteursillustrations-microvib-web2
  • Measure locally the total deformations of the concrete and the temperature variations.
  • Detecting micro-cracking in a concrete part.
  • Measure the opening of microcracks in the concrete.
  • Evaluate mechanical stress variations in concrete
  • Measure locally the total deformations of the concrete and the temperature variations.
  • Detecting micro-cracking in a concrete part.
  • Measure the opening of microcracks in the concrete.
  • Evaluate mechanical stress variations in concrete

FEATURES

Microvib / Microvib R®

SENSOR

Frequency measurement range

900Hz - 1200Hz

Strain measurement range

3000 μm/m

Resolution

1 μm/m

Deformation accuracy

± 0.1% EM

Non-linearity

± 0.5% EM

Operating temperature

From -40°C to 105°C

Temperature measurement range

From -30°C to 80°C

Thermistor

3kΩ at 25°C

Temperature accuracy

±1°C

Useful length of the sensor

54mm or 153mm

Maximum sensor diameter

25mm

Weight

300g

Cable length

1.5 km

Materials:

Stainless steel
ABS
PVC

Options

MicroVibRR version for radioactive and high temperature environments
