PRESSIOLUX® : pressure sensor

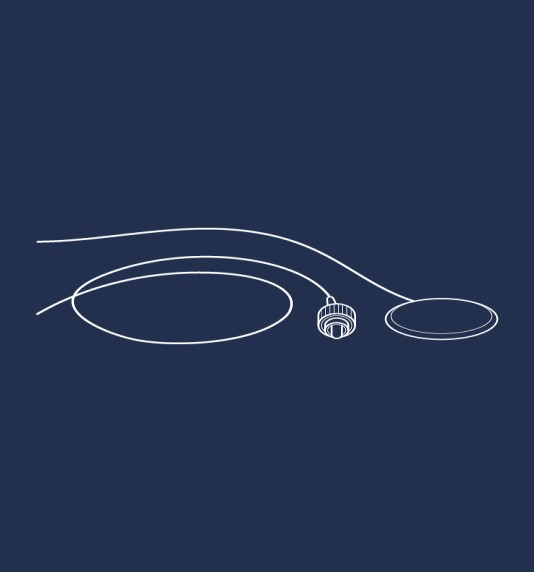

The PressioLux Aero® is a compact fiber optic pressure sensor specially designed for the aeronautics and aerospace industries.
Fiber optic pressure monitoring
Its pellet shape and very small size make it ideal for an on-board sensor and allows
absolute static pressures of several bars to be measured.
Based on Bragg Grating technology, it takes advantage of the exceptional benefits of fiber optics by resisting environments.
It can be chained on the same optical fiber with other PressioLux Aero® sensors to create a pressure measurement chain.
When used with a BraggLogger interrogator, multiple optical fibers each with Aero PressioLux can be measured simultaneously, saving significant weight and space
Talk to our experts
Applications
PRESSIOLUX® : pressure sensor
- Measurement of a pressure applied along a structure (aircraft, rockets).
- Pressure measurement in a fluid (air, water, hydrocarbons)
- Measurement of a pressure applied along a structure (aircraft, rockets).
- Pressure measurement in a fluid (air, water, hydrocarbons)
|
FEATURES |
PressioLUX® |
|---|---|
|
SENSOR |
|
|
Technologies |
FBG (Fiber Bragg Grating) |
|
Measuring range |
0 to 15bars (other on request) |
|
Accuracy |
± 0,15bar |
|
Operating temperature |
From - 40°C to 150°C |
|
Associated interrogator |
BraggLogger |
|
Measurement frequency |
Up to 5kHz |
|
Weight |
11g |
|
Dimensions |
Diameter: 28mm / Height: 2.5mm |
