The TiltLog is a tilt monitoring tool designed for infrastructure monitoring such as railways, buildings, bridges and dams.

logo-trust-techMonitoring of structure inclination

The TiltLog is a tilt monitoring tool designed for infrastructure monitoring such as railways, buildings, bridges and dams.
Based on a robust bi-axial MEMS sensor, the TiltLog allows for several years of maintenance-free, high-precision inclinometric measurements thanks to its complete autonomy.


It is designed to be installed in harsh environments and can be used alone or in combination with several other TiltLogs to track the overall evolution of a structure or terrain.


It is available in a wired RS485 version or in a wireless LoRa version.
The wired version allows to create an inclinometric chain and to perform static or dynamic measurements.
The wireless version allows for multi-year measurements in hard-to-reach locations or when sensors are far apart.
Data display via the Datatys platform offers simplified, efficient and continuous monitoring.

image background

Talk to our experts

Arnaud DE PRACOMTAL

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Arnaud.DEPRACOMTAL@socotec.com
image background

Applications

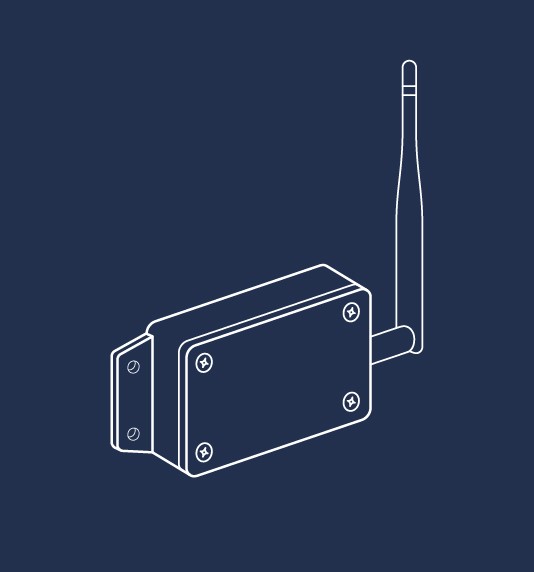

TILTLOG inclinometric sensor

capteursillustrations-image

The TiltLog allows you to monitor:

  • Pressure points for the stability of the structure.
  • Construction-related effects.
  • Behavior of structures under high load.
  • Deformations, sensitive areas, rotations, soil movements.

The TiltLog allows you to monitor:

  • Pressure points for the stability of the structure.
  • Construction-related effects.
  • Behavior of structures under high load.
  • Deformations, sensitive areas, rotations, soil movements.

FEATURES

TiltLOG®

SENSOR

Technology

MEMS bi-axial inclinometer

Measuring range

±30°

Full scale accuracy

±0.01°

Accuracy over ±5°.

±0.005°

Resolution

0,001°

Temperature sensor

0.1°C

MECHANICS

Sensor dimensions (without antenna)

145x80x40mm

Operating temperature

From -20°C to 70°C

Protection class

IP67

Weight

450g

Material

Aluminium

LoraWAN

Wireless network

Private with Gateway / Operated by Orange or Objenious

Technology

ABP/OTAA

FrequenceLorawan

EU868MHz

Scope

Up to 10km

Transmission frequency

> 1 min
