The VibroLog is a sensor for vibration monitoring. It is designed for monitoring construction sites and large road and rail infrastructures.

logo-trust-techVibration monitoring of your infrastructures and construction
sites

It is composed of a robust, durable (30h autonomy) and waterproof (IP65) vibrometer ready to be deposited in any type of ground. Easy access to data and measurement parameters is possible at any time, thanks to its Wifi, 3G and GPS connections. The event detection system integrated in the VibroLog device allows send SMS alerts automatically when the limit is exceeded.

Data display via the Datatys platform offers simplified, efficient, and continuous vibration monitoring.

image background

Talk to our experts

Arnaud DE PRACOMTAL

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Arnaud.DEPRACOMTAL@socotec.com
image background

Applications

VIBROLOG® : vibration monitoring system

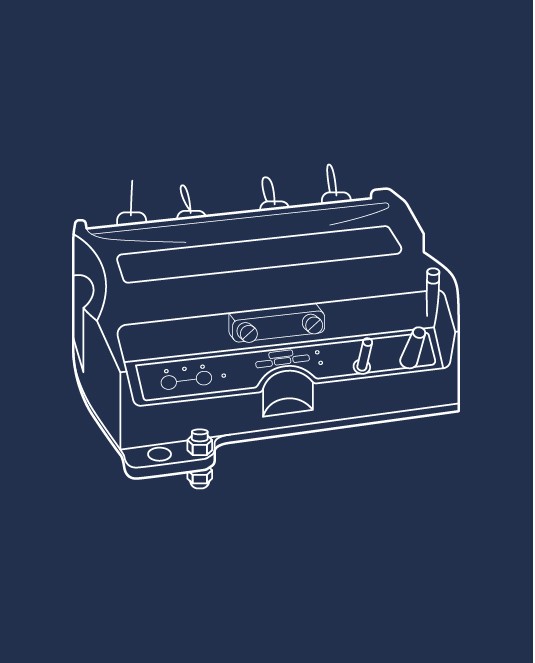

vibrolog-socotec-capteur

The VibroLog allows to monitor and protect :



  • Construction and demolition sites.
  • Road, airport and underground infrastructures.
  • Sensitive buildings and equipment.

The VibroLog allows to monitor and protect :



  • Construction and demolition sites.
  • Road, airport and underground infrastructures.
  • Sensitive buildings and equipment.

FEATURES

VibroLOG®

VIBROMETER

Technology

Class 1 (DIN 45669-1)

Brand

ACOEM (01dB)

Accelerometer

Integrated triaxial

Frequency response

0.4 to Hz1600

Dynamic range in acceleration

0.5 mm/s² to m/s²100

Dynamic range in speed

0.05 mm/s to mm/s140

Real-time analysis

1/3 octave from 1 to 315 Hz

Storage

SD card (2 to GB128)

Connections

GPS, Wifi and 3G

MEASURES

Embedded standards

Circular of 23 July 1986, Order of 22 September 1994, BS 5228-4, BS
7385-2, BS 6472-1, DIN 4150-2, DIN 4150-3, ISO 2631-2 2003 and ISO 2631-2 1989

Indicators

PPV/DF, PCPV/DF, VpMax, VDV, Lp

POWER

External power supply

12 V DC ± 3 V on charger input

Battery

20 Ah

Autonomy

Up to 30H
